Fireproof profile

Description

Fireproof doors and other steel section structures with a fire resistance rating of up to EIW 120.

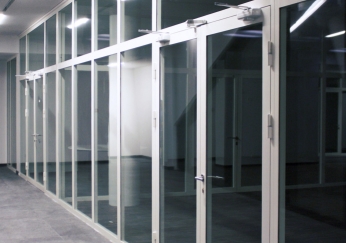

Internal and external hinged doors, entrance lobbies, ceilings, showcases, partition walls and window sections of fireproof steel section shapes. The Stalprofil fireproof section structures meet the current European standards and have the respective certificates.

The steel fireproof  systems, fitted with fire resistant glazing or filled with sandwich panels, are intended for the production of fireproof structures with a fire resistance rating of up to EIW 120. The tube walls are 2 mm thick, steel grade SS 1312. The design of a fireproof section may be different and, as an option, fitted with two thermal breaks in order to ensure enhanced durability and fire resistance.

  • The fireproof systems for installation in offices, schools, flats, hotels, hospitals, airports, sports centers and other buildings. The characteristics of steel provide many exciting variations of smooth interior and exterior surfaces and allow you to create light and pleasant environments while complying with fire safety regulations.
Advantage

A steel fireproof section offers a series of extra benefits. The temperature of smoke and gases during fires may exceed 900 degrees, an aluminium section melts at 650 degrees, which implies that an aluminium structure is destroyed on the 13th-15th minute of the fire resistance test, whereas the steel fireproof structures of the SP 76500 system, fitted with fire resistant glass, ensure the required protection level.

Attachments
The full catalog of RAL colors
593 KB
Certificate for fireproof double-leave steel profile doors with glass, protection class EI 30
137 KB
Certificate for fireproof double-leave steel profile doors with glass, protection class EI 60
137 KB
Certificate for fireproof one-leave steel profile doors with glass, protection class EI 60
137 KB
